ProgressBar

License: LGPL-3.0 (GNU Lesser General Public License v3.0)

This resource is based on ox_lib which is licensed under LGPL-3.0.

⚠️ This redesign is a paid product. Only verified purchasers are eligible for support and updates. Unverified users will not receive any assistance under any circumstances.

Overview

3 progressbar designs available via the ox:progressbar convar. Each design has both a bar variant and a circle variant.

# config.cfg
set ox:progressbar 0

Designs

Value	Name	Bar	Circle
`0`	Linear Bar + Circle Ring	Standard linear bar	Smooth circle ring
`1`	Diagonal Loading	Diagonal striped bar	Diagonal striped ring
`2`	Dot Progress	Animated dot bar	Animated dot ring

Design 0 — Linear Bar + Circle Ring

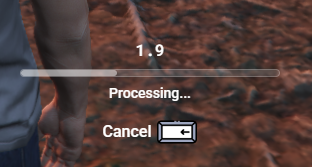

Progressbar 0
Progress Circle 0

Design 1 — Diagonal Loading

Progressbar 1
Progress Circle 1

Design 2 — Dot Progress

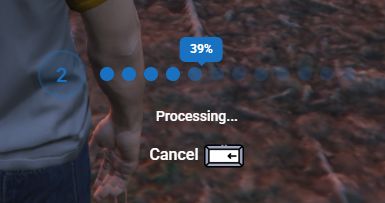

Progressbar 2

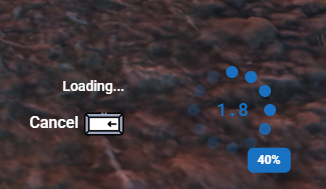

Progress Circle 2

Usage

lib.progressBar(data)

Displays a linear progress bar.

lib.progressBar({
    duration = 5000,
    label = 'Processing...',
    useWhileDead = false,
    canCancel = true,
    disable = {
        car = true,
        move = true,
        combat = true,
    },
    anim = {
        dict = 'anim@amb@nightclub@mini@drinking@drinking_shots@ped_a@normal',
        clip = 'bottle_drink_drink_shots_bottle_a',
    },
})

lib.progressCircle(data)

Displays a circular progress indicator.

lib.progressCircle({
    duration = 3000,
    label = 'Repairing...',
    canCancel = true,
    disable = {
        move = true,
    },
})

Parameters

Field	Type	Default	Description
`duration`	`number`	—	Duration in milliseconds (required)
`label`	`string?`	`nil`	Display text
`position`	`'middle'` \| `'bottom'`	`'middle'`	Screen position
`useWhileDead`	`boolean?`	`false`	Allow while dead
`allowRagdoll`	`boolean?`	`false`	Allow while ragdolled
`allowCuffed`	`boolean?`	`false`	Allow while handcuffed
`allowFalling`	`boolean?`	`false`	Allow while falling
`allowSwimming`	`boolean?`	`false`	Allow while swimming
`canCancel`	`boolean?`	`false`	Allow cancel with Backspace

disable

Field	Type	Description
`move`	`boolean?`	Disable player movement
`sprint`	`boolean?`	Disable sprinting
`car`	`boolean?`	Disable vehicle entry
`combat`	`boolean?`	Disable combat actions
`mouse`	`boolean?`	Disable mouse look

anim

Field	Type	Description
`dict`	`string?`	Animation dictionary
`clip`	`string`	Animation clip name
`flag`	`number?`	Animation flag
`blendIn`	`number?`	Blend in speed
`blendOut`	`number?`	Blend out speed
`scenario`	`string?`	Scenario name (alternative to dict/clip)

prop

Field	Type	Description
`model`	`string` \| `number`	Prop model name/hash
`bone`	`number?`	Bone index to attach to
`pos`	`vector3`	Position offset
`rot`	`vector3`	Rotation offset

Return Value

Type	Description
`boolean`	`true` if completed, `false` if cancelled

Utility Functions

lib.progressActive()

Returns whether a progress bar/circle is currently active.

local isActive = lib.progressActive() -- boolean

lib.cancelProgress()

Cancels the active progress if canCancel was set to true.

lib.cancelProgress()

Examples

Fishing with cancel

if lib.progressCircle({
    duration = 8000,
    label = 'Fishing...',
    canCancel = true,
    disable = { move = true, combat = true },
}) then
    -- Caught a fish
else
    -- Cancelled
end

Vehicle Repair

if lib.progressBar({
    duration = 10000,
    label = 'Repairing Vehicle...',
    canCancel = false,
    disable = { move = true, car = true, combat = true },
    anim = {
        dict = 'mini@repair',
        clip = 'fixing_a_player',
    },
}) then
    -- Repair complete
end

Last updated: 2026-02-18
